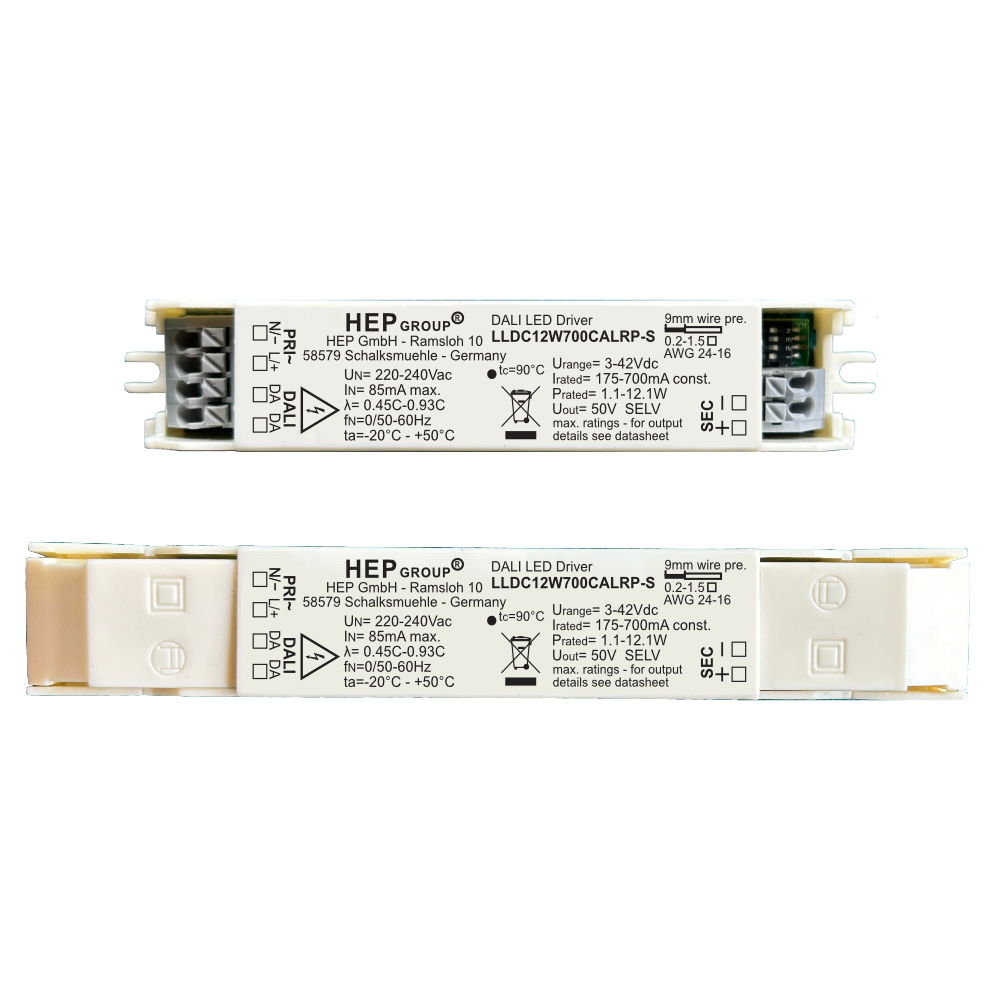

Dimmable constant current LED Driver
Adjustable output current from 175 to 700 mA via DIP-Switch
DALI−2 DT6 or TouchDIM
Ripple current ± 5 %
Compact case, linear shape
Built-in type with double or reinforced insulation
Optional with strain relief for independent installation
Average lifetime 50.000 h
5 Years guarantee
Short– & open circuit proof
Auto. overheat regulation or cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LLDC12W700CALR-S | 6−42 Vdc | 175 mA | 1.1−7.3 W | 0.45−0.93C | ± 5 % |
| 6−42 Vdc | 200 mA | 1.2−8.4 W | |||
| 6−42 Vdc | 225 mA | 1.4−9.4 W | |||
| 6−42 Vdc | 250 mA | 1.5−10.5 W | |||
| 6−36 Vdc | 325 mA | 2−11.7 W | |||
| 3−34 Vdc | 350 mA | 1.1−11.9 W | |||
| 3−32 Vdc | 375 mA | 1.2−12 W | |||
| 3−30 Vdc | 400 mA | 1.2−12 W | |||
| 3−24 Vdc | 475 mA | 1.5−11.4 W | |||
| 3−24 Vdc | 500 mA | 1.5−12 W | |||
| 3−22 Vdc | 525 mA | 1.6−11.5 W | |||
| 3−22 Vdc | 550 mA | 1.7−12.1 W | |||
| 3−18 Vdc | 625 mA | 1.9−11.2 W | |||
| 3−18 Vdc | 650 mA | 2−11.7 W | |||
| 3−17 Vdc | 675 mA | 2.1−11.4 W | |||
| 3−17 Vdc | 700 mA | 2.1−11.9 W |
