DC Output with constant current with 900 or 1050 mA
Phase dimmable with trailling edge dimmers
Ripple current ± 4 %
Compact case with strain reliefs for independent use
Suitable for Class II luminaires
Average lifetime 40.000 h
5 Years guarantee
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LETC42W1000LR-Z | 25−40 V | 1000 mA | 25−40 W | 0.95−0.98 | ± 4 % |

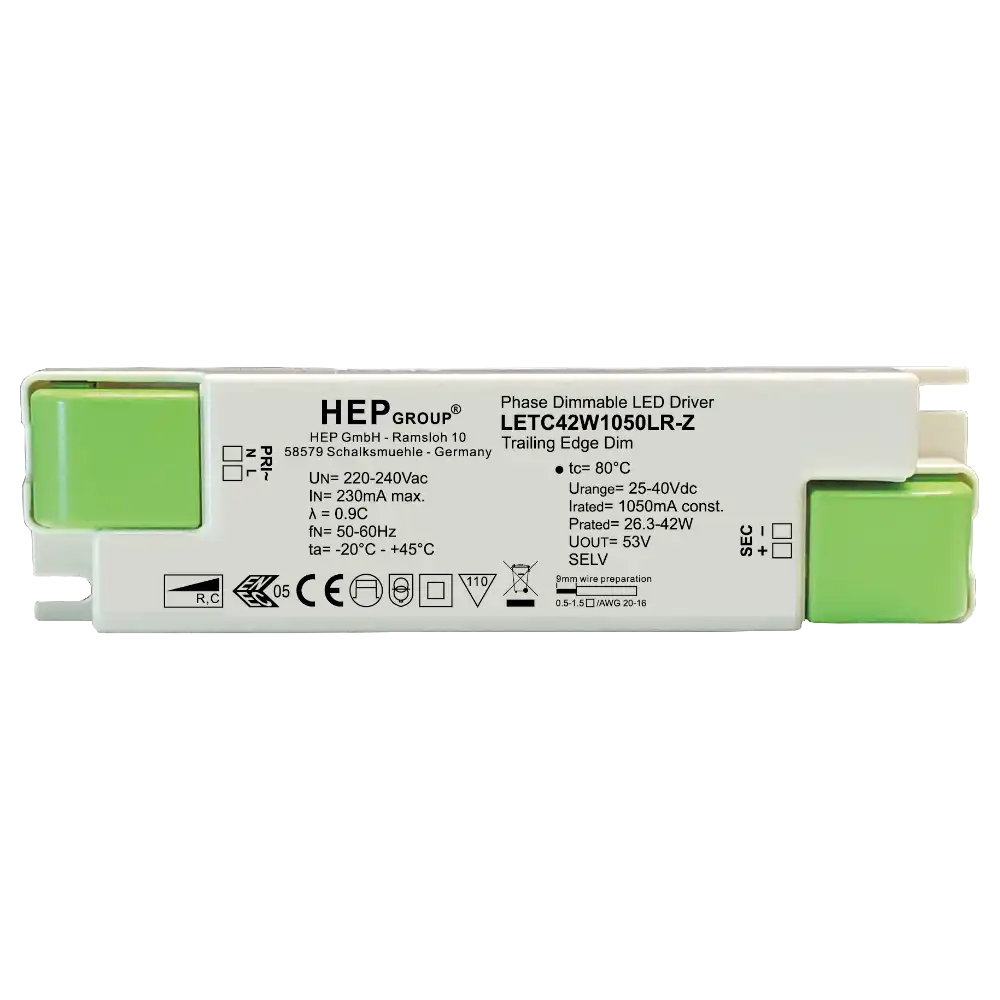

| LETC42W1050LR-Z | 25−40 Vdc | 1050 mA | 26.3−42 W | 0.95−0.98 | ± 4 % |
| LETC42W700LR-Z | 32−54 Vdc | 700 mA | 22.4−37.8 W | 0.95−0.98 | ± 4 % |
| LETC42W900LR-Z | 25−40 Vdc | 900 mA | 22.5−36 W | 0.95−0.98 | ± 4 % |
