DC Output with constant voltage of 12, 24 or 48 V
Suitable for Class II luminaires
Small housing
Strain reliefs for independent use
Average lifetime 50.000 h
5 Years warranty
DC Output with constant voltage of 12, 24 or 48 V
Suitable for Class II luminaires
Small housing
Strain reliefs for independent use
Average lifetime 50.000 h
5 Years warranty
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LBV6W12-Z UNI | 12 Vdc | 500 mA max. | 0−6 W | 0.90 C | ± 4 % |
| LBV6W24-Z UNI | 24 Vdc | 250 mA max. | 0−6 W | 0.90 C | ± 3 % |

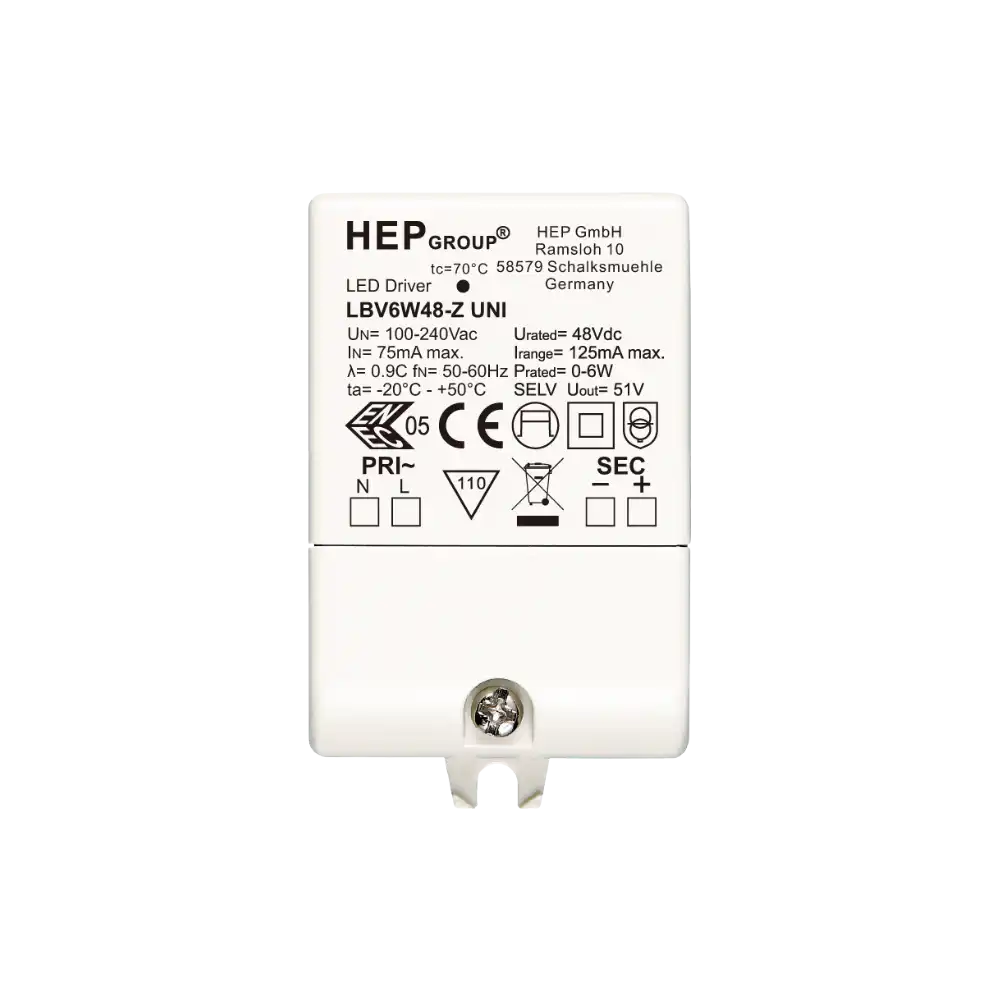

| LBV6W48-Z UNI | 48 Vdc | 125 mA max. | 0−6 W | 0.90 C | ± 3 % |
