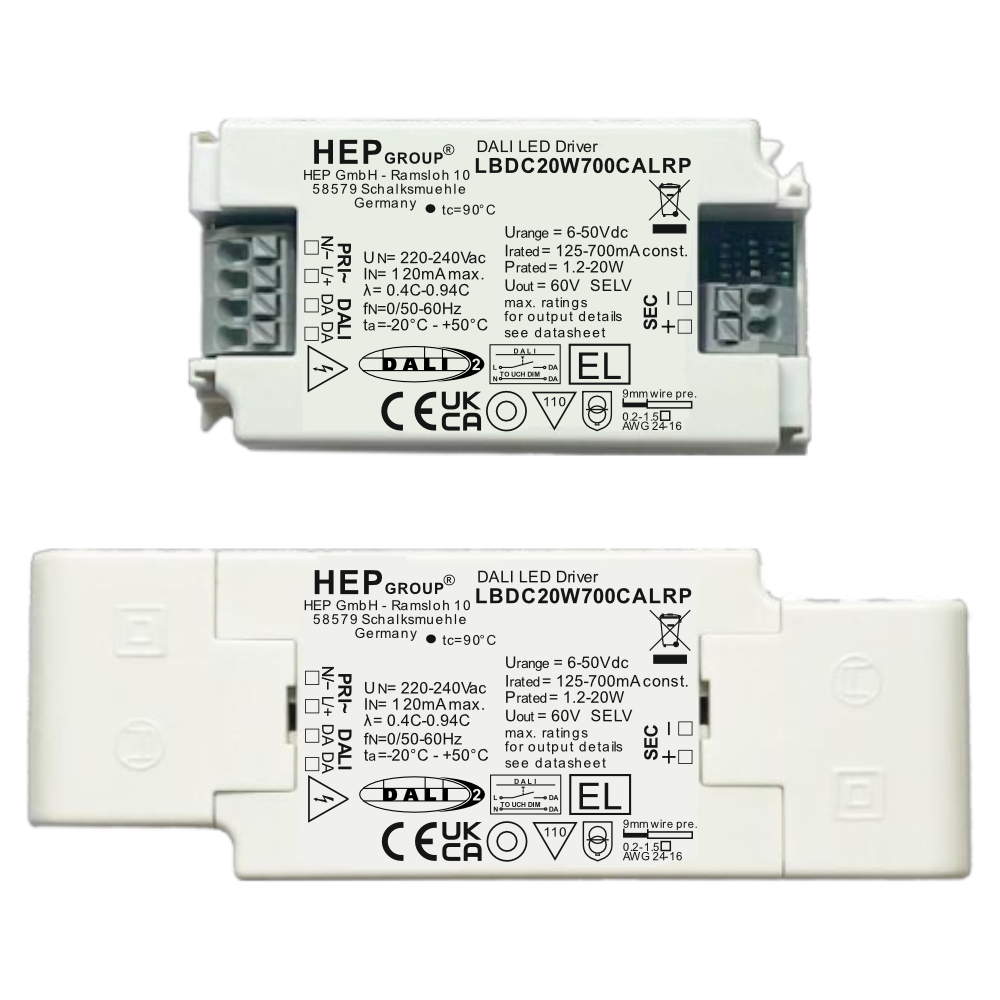

Dimmable constant current LED Driver
Adjustable output current from 125 to 700 mA via DIP-Switch
DALI−2 DT6 or TouchDIM
Ripple current ± 5 %
Compact case, rectangular shape
Built-in type with double or reinforced insulation
Optional with strain relief for independent installation
Average lifetime 50.000 h
5 Years guarantee
Short– & open circuit proof
Auto. overheat regulation or cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LBDC20W700CALRP | 12−50 Vdc | 125 mA | 1.5−6.2 W | 0.4−0.94C | ± 5 % |
| 12−50 Vdc | 175 mA | 2.1−8.7 W | |||
| 6−50 Vdc | 200 mA | 1.2−10 W | |||
| 6−50 Vdc | 250 mA | 1.5−12.5 W | |||
| 6−50 Vdc | 275 mA | 1.7−13.7 W | |||
| 6−50 Vdc | 325 mA | 2−16.2 W | |||
| 6−50 Vdc | 350 mA | 2.1−17.5 W | |||
| 6−50 Vdc | 400 mA | 2.4−20 W | |||
| 6−42 Vdc | 425 mA | 2.6−17.8 W | |||
| 6−42 Vdc | 475 mA | 2.9−19.9 W | |||
| 6−40 Vdc | 500 mA | 3−20 W | |||
| 6−36 Vdc | 550 mA | 3.3−19.8 W | |||
| 6−30 Vdc | 575 mA | 3.5−17.2 W | |||
| 6−30 Vdc | 625 mA | 3.8−18.7 W | |||
| 6−30 Vdc | 650 mA | 3.9−19.5 W | |||
| 6−28 Vdc | 700 mA | 4.2−19.6 W |
