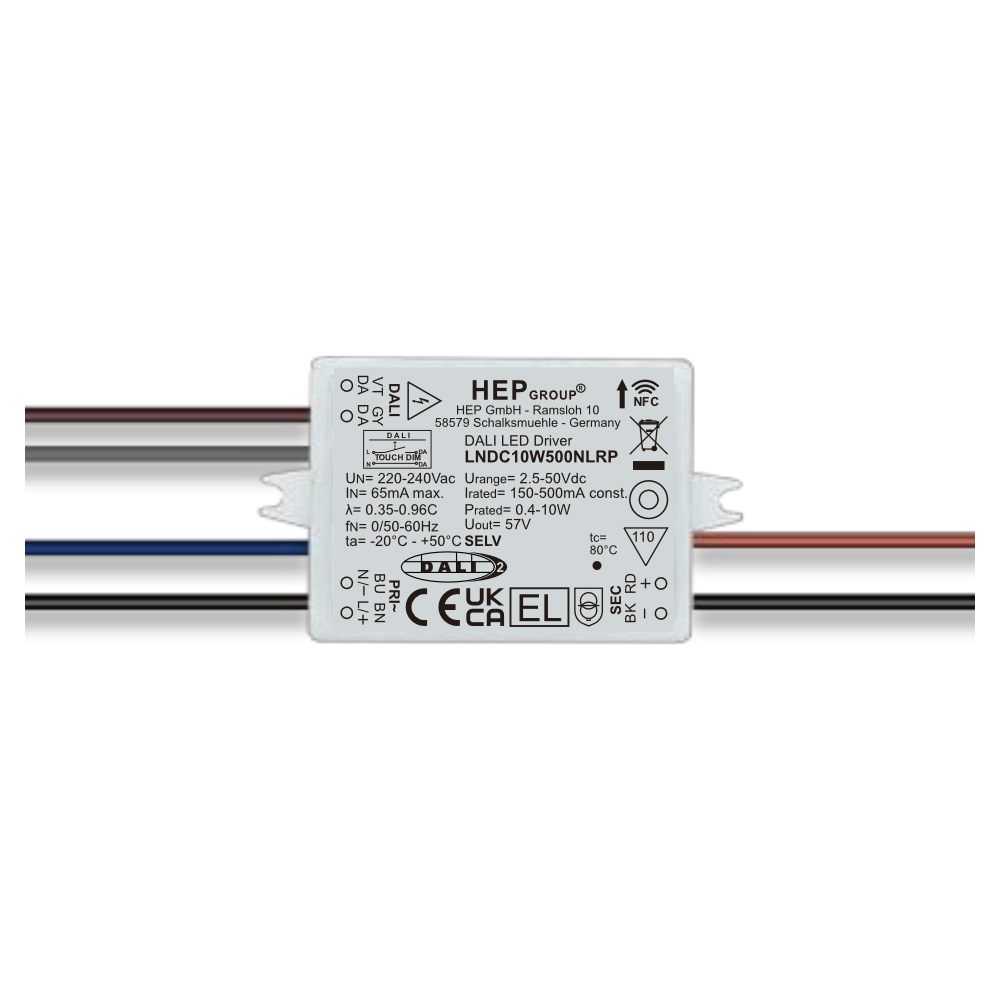

LNDC 10 W 150-500 mA NFC DALI-2 DT6

CEDALI-2NFCTouchDIMSELVRoHSSafety110Built-in / double insulationTrashcanUKCAEmergency Light

Product Description

Dimmable constant current LED Driver
Adjustable output current from 150 to 500 mA via NFC in 1 mA steps
DALI−2 DT6 or TouchDIM
Ripple current ± 2.5 %
Compact case
Built-in type with double or reinforced insulation
Average lifetime 50.000 h
5 Years guarantee

Protection

Short– & open circuit proof
Auto. overheat regulation or cut off
Overload protection
SELV

ProductUrangeIratedPratedPfRipple
LNDC10W500NLRP2.5−50 Vdc150 mA0.4−7,5 W0.35C−0,962,5 %
2.5−50 Vdc200 mA0.5−10 W
2.5−40 Vdc250 mA0.7−10 W
2.5−33,3 Vdc300 mA0.8−9.9 W
2.5−28.6 Vdc350 mA0.9−10 W
2.5−25 Vdc400 mA1−10 W
2.5−22.2 Vdc450 mA1.2−9.9 W
2.5−20 Vdc500 mA1.3−10 W
