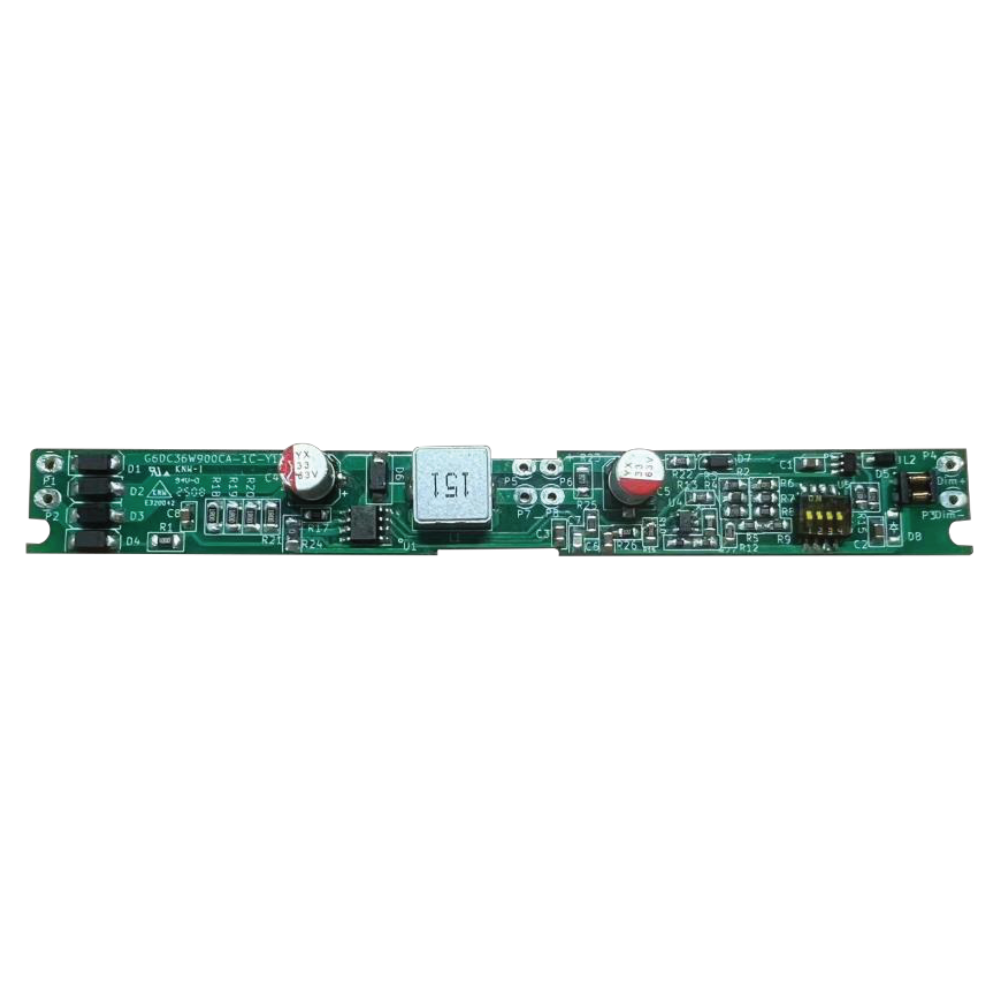

LV-DC supplied 1-10 V dimmable LED Driver for constant current LED
Adjustable output current from 150 to 900 mA in steps of 50 mA via DIP-Switch
Operating ambient temperature -20°C – +35°C
Average service life 30.000 h
5 Years guarantee
LV-DC supplied 1-10 V dimmable LED Driver for constant current LED
Adjustable output current from 150 to 900 mA in steps of 50 mA via DIP-Switch
Operating ambient temperature -20°C – +35°C
Average service life 30.000 h
5 Years guarantee
Short– & open circuit proof
Auto. overheat regulation or cut off
Overload protection
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| G6DC36W900CA-1C | 3−40 Vdc | 150 mA | 0.4−6 W | ||
| 200 mA | 0.6−8 W | ||||
| 250 mA | 0.7−10 W | ||||
| 300 mA | 0.9−12 W | ||||
| 350 mA | 1−14 W | ||||
| 400 mA | 1.2−16 W | ||||
| 450 mA | 1.3−18 W | ||||
| 500 mA | 1.5−20 W | ||||
| 550 mA | 1.6−22 W | ||||
| 600 mA | 1.8−24 W | ||||
| 650 mA | 1.9−26 W | ||||
| 700 mA | 2.1−28 W | ||||
| 750 mA | 2.2−30 W | ||||
| 800 mA | 2.4−32 W | ||||
| 850 mA | 2.5−34 W | ||||
| 900 mA | 2.7−36 W |
